Pershing offers its clients the possibility to choose between
different layouts for different geographical markets

The integration of the control and

interface between engines and

drives is supported by a platform

jointly developed by Top System

with Onyx for the EasySet sys-

tem and Xenta Systems for the

advanced electro-hydraulic steer

by wire system, supported by the

Naviop-Simrad LOOP or the nav-

igation and monitoring systems.

1. ENGINES
2 x MTU 16V 2000 M96 power 2435 mhp / 1790 kW at 2450 rpm + TS 95P std
2 x MTU 16V 2000 M96L power 2638 mhp / 1939 kW at 2450 rpm + TS 100 opt

2. SPEED (knots) MTU 2435 MTU 2638
Maximum speed 45 48
Cruising speed 38 41
3. RANGE (nautical miles) MTU 2435 MTU 2435
Maximum speed 295 285
Cruising speed 320 310

4. MAIN SIZES
Loa = overall length (standard ISO 8666) 25.55 m 83 ft. 10 in.
Lh = hull length (standard ISO 8666) 22.85 m 75 ft. 0 in.
Lwl = waterline length (boat fully laden) 19.6 m 64 ft. 4 in.
Maximum beam 5.86 m 19 ft. 3 in.
Depth under propellers (boat fully laden) 1.4 m 4 ft. 7 in.
Displacement unladen 57 ton/lb 125663
Displacement laden 67 ton/lb 147710
Maximum number of persons on board 16
Design category Directive 2013/53/EU A
Certification modules B + F + Aa (sound emission) RINA S.p.A.
5. TECHNICAL DATA
Hull type: warped hull with spray rails and aft deadrise 20°
H = overall height from keel to rollbar 6.33 m 20 ft. 9 in.
Ht = minimum transport height from keel 5.87 m 19 ft. 3 in.
P = pulpit + transom 2.70 m 8 ft. 10 in.
Fuel tank capacity 6200 lt/US gals 1638
Water tanks capacity 1300 lt/US gals 343
6. PERFORMANCE SPECIFICATIONS
the performance is estimated at the following conditions:
standard version displacement of the yacht: 59.8 ton/lb 131769
at 1/3 of load, clean hull, 25°C air temperature,
good weather conditions, 6 persons on board

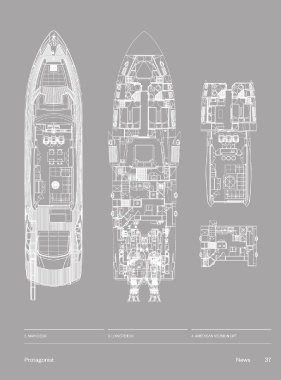

overloading the yacht by: 2 ton/lb 4409 1. SUN DECK 2. MAIN DECK 3. LOWER DECK 4. AMERICAN VERSION OPT
top speed decreases of: 1 knot
