Page 47 - PROTAGONIST 122

This first Riva 88’ Folgore unit is fitted with twin MTU 16V 2000 M96L

engines rated 2638 mhp, for a top speed of 39 knots and cruising speed
of 33 knots. It is also fitted with Humphree dynamic trim interceptors

and Seakeeper SK26 gyroscopic stabilizer to provide the maximum
comfort at anchor and cruising.

1. ENGINES
2 x MTU 16V 2000 M96 power 2435 mhp / 1792 kW at 2450 rpm SIDE VIEW
2 x MTU 16V 2000 M96L power 2638 mhp / 1939 kW at 2450 rpm

2. SPEED (knots) (2638 mhp)
Maximum speed 39
Cruising speed 33

3. RANGE (nautical miles)
Maximum speed 310
Cruising speed 340

4. MAIN SIZES
Loa = Overall length 26.92 m
Lh = Hull length 23.98 m
Lwl = waterline length 22.10 m
Maximum beam 6.31 m
Depth under propellers 1.97 m
Displacement unladen 70 t
Displacement laden 82 t
Maximum number of person on board 20
Design category Directive 2013/53/EU A
Certification modules B + F + Aa

5. TECHNICAL DATA
Hull type: warped hull with spray rails and aft deadrise 13
H = Overall height from keel 7.85 m
P = pulpit + transom 2.94 m
Fuel tank capacity 8000
Water tanks capacity 1200
6. PERFORMANCE SPECIFICATIONS
overloading the yacht by 2 t
top speed decreases of 1 knot
The performance is estimated at the following conditions:
standard version displacement of the yacht: 73.2 t

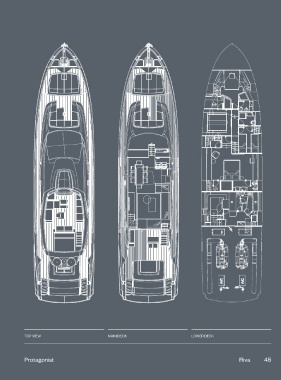

at 1/3 liquid load, clean hull, 25°C air temperature TOP VIEW MAIN DECK LOWER DECK
good weather conditions, 6 persons on board

Pr
45
44 argomentoRiva Protagonistotagonist ProtagonistProtagonist argomentoRiva 45
44
