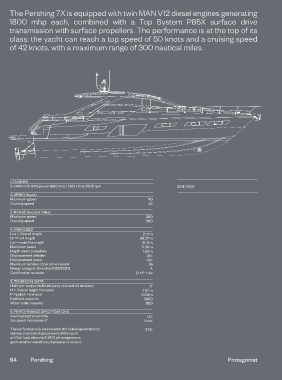

The Pershing 7X is equipped with twin MAN V12 diesel engines generating

1800 mhp each, combined with a Top System P85X surface drive
transmission with surface propellers. The performance is at the top of its

class: the yacht can reach a top speed of 50 knots and a cruising speed
of 42 knots, with a maximum range of 300 nautical miles.

1. ENGINES
2 x MAN V12 1800 power 1800 mhp / 1323 kW at 2300 rpm SIDE VIEW

2. SPEED (knots)
Maximum speed 50
Cruising speed 42

3. RANGE (nautical miles)
Maximum speed 260
Cruising speed 300

4. MAIN SIZES
Loa = Overall length 21.11 m
Lh = Hull length 20.27 m
Lwl = waterline length 16.13 m
Maximum beam 5.35 m
Depth under propellers 1.52 m
Displacement unladen 35 t
Displacement laden 42 t
Maximum number of person on board 16
Design category Directive 2013/53/EU A
Certification modules B + F + Aa

5. TECHNICAL DATA
Hull type: warped hull with spray rails and aft deadrise 17
H = Overall height from keel 7.07 m
P = pulpit + transom 0.84 m
POWER WINDOW
Fuel tank capacity 3600
Water tanks capacity 800
6. PERFORMANCE SPECIFICATIONS
overloading the yacht by 1.5 t
top speed decreases of 1 knot
The performance is estimated at the following conditions: 37.1 t
standard version displacement of the yacht POWER WINDOW
at 1/3 of load, clean hull, 25°C air temperature,
good weather conditions, 8 persons on board.
