Page 21 - PROTAGONIST 118

The Riva 90’ Argo features high technology solutions
and unrivalled innovative features

The Riva 90’ Argo comes with

standard twin MTU 12V 2000

M96L engines with a power

of 1948 MHP each. This enables

it to reach a cruising speed of 22

and a maximum speed of 26

knots. The vessel boasts two

stabilizing fins and Seakeeper

anti-roll gyroscopes, as found

on the first unit.

1. ENGINES
2 x MTU 12V 2000 M96L power 1948 mhp / 1432 kW at 2450 rpm std
2 x MTU 16V 2000 M84 power 2218 mhp / 1630 kW at 2450 rpm opt
2 x MTU 16V 2000 M96 power 2435 mhp / 1790 kW at 2450 rpm opt

2. SPEED (knots) MTU 1948 MTU 2218 MTU 2435
Maximum speed 26 28 30
Cruising speed 22 24 26

3. RANGE (nautical miles) MTU 1948 MTU 2218 MTU 2435
Maximum speed 300 275 275
Cruising speed 320 300 300

4. MAIN SIZES
Loa = overall length (standard ISO 8666) 28.49 m 93 ft. 6 in.
Lh = hull length (standard ISO 8666) 23.98 m 78 ft. 8 in.
Lwl = waterline length (boat fully laden) 23.10 m 75 ft. 9 in.
Maximum beam 6.50 m 21 ft. 4 in.
Depth under propellers (boat fully laden) 2.15 m 7 ft. 1 in.
Displacement unladen 85 ton/lb 187393
Displacement laden 98 ton/lb 216053
Maximum number of persons on board 20
Design category Directive 2013/53/EU A
Certification modules B + F + Aa (sound emission) RINA S.p.A.

5. TECHNICAL DATA
Hull type: warped hull with spray rails and aft deadrise 12°
H = Overall height from keel to rollbar 8.60 m 28 ft. 3 in.
P = bow + stern projections /appendages 4.51 m 14 ft. 10 in.
Fuel tanks capacity 8700 lt/US gals 2298
Water tanks capacity 1320 lt/US gals 349
6. PERFORMANCE SPECIFICATIONS
The performance is estimated at the following conditions:
standard version displacement of the yacht: 88.48 ton/lb 195056
at 1/3 liquid load, clean hull, 25°C air temperature
good weather conditions, 6 persons on board

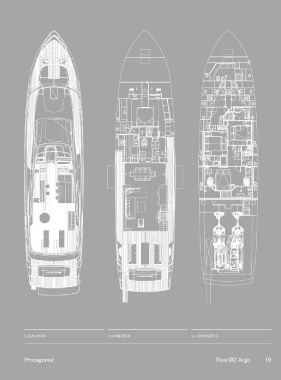

Overloading the yacht by: 1.2 ton/lb 2646 1. SUN DECK 2. SUN DECK 3. MAIN DECK 4. LOWER DECK
Top speed decreases of: 1 knot

18 Riva 90’ Argo Protagonist Protagonist Riva 90’ Argo 19
