The new Ferretti Yachts 500 is fitted with twin Cummins QSB 6.7 engines

delivering 550 mhp, for a top speed of 30 knots and a cruising speed of 25
knots. It will also be equipped with a package of Humphree interceptors

trim tabs with automatic functions to ensure the maximum ease of use and
optimize fuel consumption.

1. ENGINES
2 x CUMMINS QSB 6.7 power 550 mhp / 404 kW at 3300 rpm SIDE VIEW

2. SPEED (knots)
Maximum speed 30
Cruising speed 25

3. RANGE (nautical miles)
Maximum speed 180
Cruising speed 200

4. MAIN SIZES
Loa = Overall length 15.33 m
Lh = Hull length 13.85 m
Lwl = waterline length 11.90 m
Maximum beam 4.33 m
Depth under propellers 1.23 m
Displacement unladen 18.5 t
Displacement laden 22 t
Maximum number of person on board 12
Design category Directive 2013/53/EU B
Certification modules B + F + Aa

5. TECHNICAL DATA
Hull type: warped hull with spray rails and aft deadrise 17
H = Overall height from keel 5.39 m
P = bow + stern projections/appendages 1.48 m
Fuel tank capacity 1350
Water tanks capacity 600
6. PERFORMANCE SPECIFICATIONS
overloading the yacht by 1 t
top speed decreases of 1 knot
the performance is estimated at the following conditions:
standard version displacement of the yacht: 19.5 t

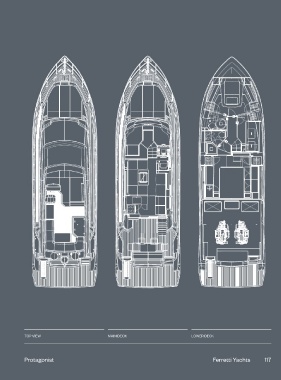

at 1/3 of load, clean hull, 25°C air temperature, TOP VIEW MAIN DECK LOWER DECK
good weather conditions, 4 persons on board
