Page 49 - PROTAGONIST-120

The Ferretti Yachts 920 is available with

three different types of MTU engine. The
first PURE comes fitted with two 12V,

2000 M96L engines, generating 1948
mhp, allowing the yacht to reach a cruising

speed of 22 knots and a maximum speed
of 26 knots. It also includes zero-speed

fins for the utmost comfort at anchor.

1. ENGINES
2 x MTU 12V 2000 M96L power 1948 mhp / 1432 kW at 2450 rpm std TV 50' TV 50' TV 50' TV 50'
2 x MTU 16V 2000 M86 power 2217 mhp / 1630 kW ar 2450 rpm opt
2 x MTU 16V 2000 M96 power 2435 mhp / 1790 kW at 2450 rpm opt
2. SPEED (knots) MTU 1948 MTU 2217 MTU 2435
Maximum speed 26 28 30
Cruising speed 22 24 26
3. RANGE (nautical miles) MTU 1948 MTU 2217 MTU 2435 1804,42 1804,42 1804,42 1804,42
Maximum speed 320 310 300
Cruising speed 360 350 340
4. MAIN SIZES
Loa = Overall length (standard ISO 8666) 28.49 m 93 ft. 6 in.
Lh = Hull length (standard ISO 8666) 23.98 m 78 ft. 8 in.
Lwl = waterline length (boat fully laden) 22.34 m 73 ft. 4 in.
Maximum beam 6.78 m 22 ft. 3 in.
Depth under propellers (boat fully laden) 2.20 m 7 ft. 3 in.
Displacement unladen 85 ton/lb 187393
Displacement laden 99 ton/lb 218258
Maximum number of persons onboard 20
Navigation category Directive 2013/53/EU A
Certification modules B+F+Aa (Sound Emission) RINA S.p.A.
5. TECHNICAL DATA
Hull type: warped hull with spray rails and aft deadrise 12,3°
H = overall height from keel to rollbar 8.82 m 28 ft. 11 in.
Ht = minimum transport height from keel 6.67 m 21 ft. 11 in.
P1 = pulpit 2.36 m 7 ft. 9 in.
P2 = transom 2.16 m 7 ft. 1 in.
Fuel tank capacity 9000 lt/US gals 2378
Water tanks capacity 1320 lt/US gals 349

6. PERFORMANCE SPECIFICATIONS
The performance is estimated at the following conditions: 89.67 ton/lb 197681 4. MAIN DECK - VARIANT
standard version displacement of the yacht
at 1/3 of load, clean hull, 25°C air temperature,
good weather conditions, 8 persons onboard

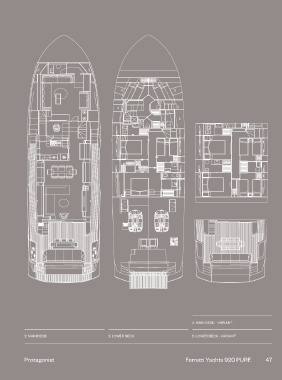

overloading the yacht by 2 ton/lb 4409 1. SUN DECK 2. MAIN DECK 3. LOWER DECK 5. LOWER DECK - VARIANT
top speed decreases of 1 knot
