Page 125 - PROTAGONIST 119

Custom Line 106’ installs two 2217-Mhp

MTU 16V 2000 M86 engines, allowing the
yacht to reach a maximum speed of 23

knots and a cruising speed of 20 knots. It is
equipped with electro-hydraulic stabilizing

fins, offering both underway and zero-
speed modes.

1. ENGINES
2 x MTU 16V 2000 M86 power 2217 mhp / 1630 kW at 2450 rpm std
2 x MTU 16V 2000 M96L power 2638 mhp / 1939 kW at 2450 rpm opt
2. SPEED (knots) MTU 2217 MTU 2638
Maximum speed 23 48
Cruising speed 20 41
Economic cruising speed 12 12

3. RANGE (nautical miles) MTU 2217 MTU 2638
Maximum speed 400 360
Cruising speed 450 400
Economic cruising speed 1050 1050

4. MAIN SIZES
Loa = Overall length (standard ISO 8666) 32.82 m 107 ft. 8 in.
Lh = Hull length (standard ISO 8666) 32.82 m 107 ft. 8 in.
Lwl = waterline length (boat fully laden) 26.74 m 87 ft. 9 in.
Maximum beam 7.30 m 23 ft. 11 in.
Depth under propellers (boat fully laden) 2.03 m 6 ft. 8 in.
Displacement unladen 126 ton/lb 277782
Displacement laden 146 ton/lb 321875
Gross tonnage 210
Maximum number of persons onboard 20
Certification modules RINA Class Certificate for Pleasure Yachts, C HULL, • MACH, Y,
Unrestricted Navigation
5. TECHNICAL DATA
Hull type: warped hull with spray rails and aft deadrise 10°
H = overall height from keel 13.23 m 43 ft. 5 in.
P = swim platform 0.00 m 0 ft. 0 in.
Fuel tanks capacity 14700 lt/US gals 3884
Water tanks capacity 3000 lt/US gals 793

6. PERFORMANCE SPECIFICATIONS
the performance is estimated at the following conditions:
standard version displacement of the yacht: 135 ton/lb 297346
at half liquid load, clean hull, 25°C air temperature,
good weather conditions, 8 persons onboard

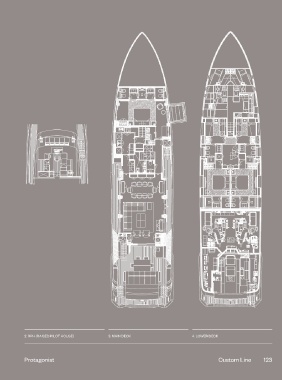

overloading the yacht by 3 ton/lb 6614 1. SUN DECK 2. RPH (RAISED PILOT HOUSE) 3. MAIN DECK 4. LOWER DECK
top speed decreases of 1 knot
